【花雕学编程】Arduino动手做（220）---P6全彩板11个小实验

实验场景图  动态图

实验场景图

  【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）

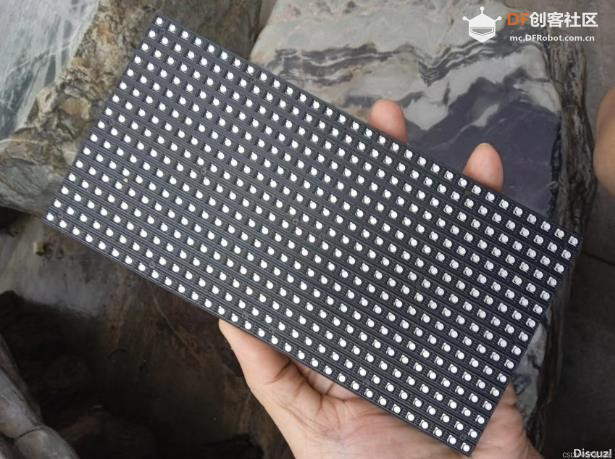

  实验二百二十：P6全彩LED模组 16X32显示屏单元板 P6-RGB-16X32-8S
  室内全彩8扫电子屏（HX-P6-16X32-A）
  项目程序之十：3个弹力球与流动文本“Arduino 16x32 RGB LED矩阵”

/*
  【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）
  实验二百二十：P6全彩LED模组 16X32显示屏单元板 P6-RGB-16X32-8S
  室内全彩8扫电子屏（HX-P6-16X32-A）
  项目程序之十：3个弹力球与流动文本“Arduino 16x32 RGB LED矩阵”
*/

#include <Adafruit_GFX.h>   //核心图形库
#include <RGBmatrixPanel.h> //硬件特定库

#define CLK 8 //必须在这个端口上！ （在Mega上使用PIN 11）
#define LAT A3
#define OE  9
#define A   A0
#define B   A1
#define C   A2

//最后一个参数='false'禁用双缓冲
RGBmatrixPanel matrix(A, B, C, CLK, LAT, OE, false);
static const unsigned char PROGMEM bitmap[64] = {0x02, 0x00, 0x01, 0x00, 0x02, 0x00, 0x01, 0x00, 0x02, 0x00, 0x01, 0x00, 0x7F, 0xFC, 0x01, 0x00, 0x04, 0x00, 0x21, 0x08, 0x09, 0x00, 0x21, 0x08, 0x11, 0x00, 0x21, 0x08, 0x21, 0x00, 0x21, 0x08, 0x3F, 0xF8, 0x21, 0x08, 0x01, 0x00, 0x21, 0x08, 0x09, 0x20, 0x21, 0x08, 0x11, 0x10, 0x21, 0x08, 0x21, 0x08, 0x21, 0x08, 0x41, 0x04, 0x3F, 0xF8, 0x05, 0x00, 0x00, 0x08, 0x02, 0x00, 0x00, 0x00};

#define F2(progmem_ptr) (const __FlashStringHelper *)progmem_ptr

const char str[] PROGMEM = "       Arduino 16x32 RGB LED Matrix";
int16_t    textX         = matrix.width(),
           textMin       = sizeof(str) * -12,
           hue           = 0;

int8_t ball[3][4] = {
  {  3,  0,  1,  1 }, //初始x速度3个弹力球
  { 17, 15,  1, -1 },
  { 27,  4, -1,  1 }
};


static const uint16_t PROGMEM ballcolor[3] = {
  0x0080, // 绿色=1
  0x0002, // 蓝色=1
  0x1000  // 红色=1
};

void setup() {
  matrix.begin();
  matrix.setTextWrap(false);
  matrix.setTextSize(2);
}

void loop(){
  byte i;

  matrix.fillScreen(0);

  for(i=0; i<3; i++) {
    matrix.fillCircle(ball[i][0], ball[i][1], 5, pgm_read_word(&ballcolor[i]));
    ball[i][0] += ball[i][2];
    ball[i][1] += ball[i][3];
    if((ball[i][0] == 0) || (ball[i][0] == (matrix.width() - 1)))
      ball[i][2] *= -1;
    if((ball[i][1] == 0) || (ball[i][1] == (matrix.height() - 1)))
      ball[i][3] *= -1;
  }

  matrix.setTextColor(matrix.ColorHSV(hue, 255, 255, true));
  matrix.setCursor(textX, 1);
  matrix.print(F2(str));

  if((--textX) < textMin) textX = matrix.width();
  hue += 7;
  if(hue >= 1536) hue -= 1536;

#if !defined(__AVR__)
  delay(20);
#endif

  matrix.swapBuffers(false);
}
复制代码

实验场景图

实验场景图  动态图

实验的视频记录
优酷：https://v.youku.com/v_show/id_XN ... hcb.playlsit.page.1
B站：https://www.bilibili.com/video/B ... 87403d97f8d3cc0b7e5

  【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）
  实验二百二十：P6全彩LED模组 16X32显示屏单元板 P6-RGB-16X32-8S
  室内全彩8扫电子屏（HX-P6-16X32-A）
  项目程序之十一：尝试运行空气动力学的康威（Conways）生存游戏v1版本

/*
  【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）
  实验二百二十：P6全彩LED模组 16X32显示屏单元板 P6-RGB-16X32-8S
  室内全彩8扫电子屏（HX-P6-16X32-A）
  项目程序之十一：尝试运行空气动力学的康威（Conways）生存游戏v1版本
*/

#include <Adafruit_GFX.h>   // Core graphics library
#include <RGBmatrixPanel.h> // Hardware-specific library
#include <EEPROM.h> // To store on EEPROM Memory

//Definition of the pattern if you use the pattern initialization
int pattern_size[] = {7, 22}; // row x Column
char pattern_init[] =
  ".........*,\
.......*.*,\
......*.*,\
**...*..*...........**,\
**....*.*...........**,\
.......*.*,\
.........*!";

bool WORLD[16][32]; // Creation of the wordl
int step_GOL; //used to know the generation

//Definition of the LED Matrix Object
#define CLK 8  // MUST be on PORTB! (Use pin 11 on Mega)
#define LAT A3
#define OE  9
#define A   A0
#define B   A1
#define C   A2
// Last parameter = 'true' enables double-BUFFER_WORLDing, for flicker-free,
// buttery smooth animatrixion.  Note that NOTHING WILL SHOW ON THE DISPLAY
// until the first call to swapBuffers().  This is normal.

RGBmatrixPanel matrix(A, B, C, CLK, LAT, OE, false); //I couldn't use double buffering because it uses
//too much memory

void setup() {
  //Serial.begin(115200); //use to print the game on the serial monitor (to debug)

  //Randomly initialazing the world for the first step
  randomSeed(analogRead(5));
  for (byte i = 0; i < 16; i++) {
    for (byte j = 0; j < 32; j++) {
      WORLD[i][j] = random(0, 2);
    }
  }

  //init_WORLD(); // Uncomment if you want to init with a specific pattern

  step_GOL = 0;
  matrix.begin();
  print_WORLD(); //Display the first generation

}

void loop() {
  if (step_GOL == 60) { // This if reboot the world after 60 generation to avoid static world
    step_GOL = 0;
    matrix.fillScreen(0);
    delay(500);
    randomSeed(analogRead(5));
    for (byte i = 0; i < 16; i++) {
      for (byte j = 0; j < 32; j++) {
        WORLD[i][j] = random(0, 2);
      }
    }
  }
  //This double "for" is used to update the world to the next generation
  //The buffer state is written on the EEPROM Memory

  for (byte i = 0; i < 16; i++) {
    for (byte j = 0; j < 32; j++) {

      if (i == 0 || i == 15 || j == 0 || j == 31) // I choose to keep the border at 0
      {
        EEPROM.write(i * 31 + j , 0);
      }
      else {
        byte num_alive = WORLD[i - 1][j - 1] + WORLD[i - 1][j] + WORLD[i - 1][j + 1] + WORLD[i][j - 1] + WORLD[i][j + 1] + WORLD[i + 1][j - 1] + WORLD[i + 1][j] + WORLD[i + 1][j + 1];
        bool state = WORLD[i][j];

        //RULE#1 if you are surrounded by 3 cells --> you live
        if (num_alive == 3) {
          EEPROM.write(i * 31 + j , 1);
        }
        //RULE#2 if you are surrounded by 2 cells --> you stay in your state
        else if (num_alive == 2) {
          EEPROM.write(i * 31 + j , state);
        }
        //RULE#3 otherwise you die from overpopulation or subpopulation
        else {
          EEPROM.write(i * 31 + j , 0);
        }
      }
    }
  }

  //Updating the World
  for (byte i = 0; i < 16; i++) {
    for (byte j = 0; j < 32; j++) {
      WORLD[i][j] = EEPROM.read(i * 31 + j);
    }
  }

  //Displaying the world
  print_WORLD();

  //Increasing the generation
  step_GOL++;

}

// PRINT THE WORLD
void print_WORLD()
{
  for (byte j = 0; j < 32; j++) {
    for (byte i = 0; i < 16; i++) {
      if (WORLD[i][j] == 0) {
        matrix.drawPixel(j, i, matrix.Color333(0, 0, 0));
      }
      else
      {
        matrix.drawPixel(j, i, matrix.Color333(0, 1, 2));
      }
    }
  }
}

//Those two function are used to display the world on the serial monitor
//Not beautiful but useful to debug

void print_WORLD_SERIAL()
{
  clearscreen();
  Serial.print("Step = "); Serial.println(step_GOL);
  for (int i = 0; i < 16; i++) {
    for (int j = 0; j < 32; j++) {
      if (WORLD[i][j] == 0) {
        Serial.print(".");
        Serial.print(" ");
      }
      else
      {
        Serial.print("*");
        Serial.print(" ");
      }
    }
    Serial.println("");
  }
  Serial.println("");

}

void clearscreen() {
  for (int i = 0; i < 10; i++) {
    Serial.println("\n\n\n\n");
  }
}

//This function is used to init the world with a know pattern
//It read . and * to convert them to 0 and 1.
//Inspired from life 1.05 format
// NB : this function needs improvment to center the pattern

void init_WORLD() {
  int k = 0;
  int row = 0;
  int column = 0;
  while (pattern_init[k] != '!') {
    if (pattern_init[k] == ',') {
      row++;
      k++;
      column = 0;
    }
    else if (pattern_init[k] == '.') {
      WORLD[row + 2][column + 4] = 0;
      k++;
      column ++;
    }
    else  {
      WORLD[row + 2][column + 4] = 1;
      k++;
      column ++;
    }
  }
}
复制代码

实验场景图  动态图

实验的视频记录
优酷：https://v.youku.com/v_show/id_XN ... hcb.playlsit.page.3
B站：https://www.bilibili.com/video/B ... 87403d97f8d3cc0b7e5

实验场景图
