【花雕学编程】Arduino动手做（217）--2.9寸墨水屏16个项目

电子纸墨水屏驱动扩展板（e-Paper Shield）电原理图

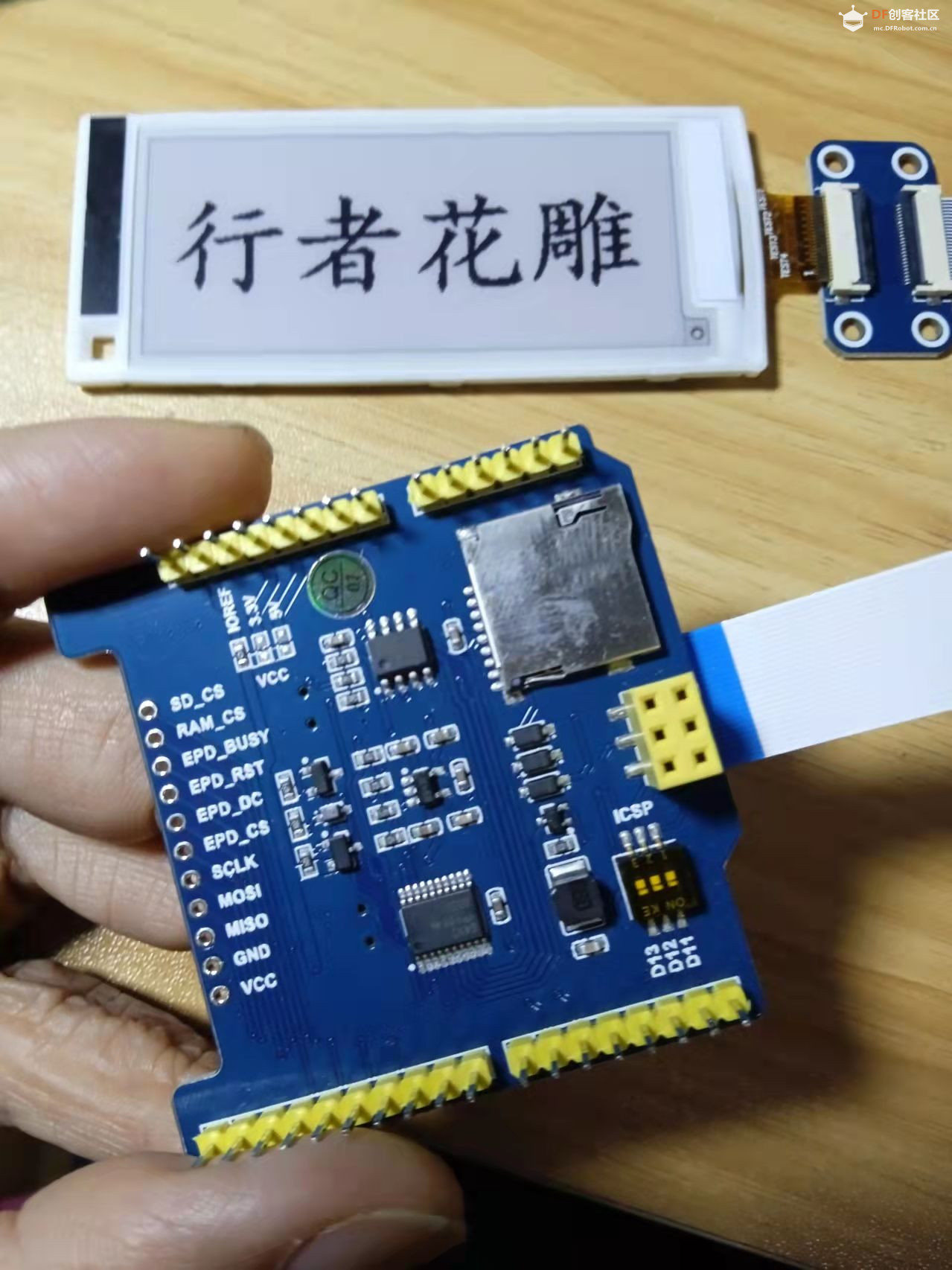

e-paper shield 相关资料
https://www.waveshare.net/wiki/E-Paper_Shield
https://www.waveshare.net/w/upload/c/c6/Zimo221.7z
https://github.com/Seeed-Studio/Small_ePaper_Shield
https://www.waveshare.net/w/upload/3/36/Image2Lcd.7z
https://www.waveshare.net/wiki/E-Paper-Floyd-Steinberg
https://www.waveshare.net/w/upload/e-Paper_Shield_Code.7z
https://www.waveshare.net/study/portal.php?mod=list&catid=40
https://www.waveshare.net/w/uplo ... hield_Schematic.pdf
https://www.waveshare.net/w/uplo ... ate_for_e-Paper.pdf
https://www.tspweb.com/key/%E5%B ... 8A%A8%E6%9D%BF.html

【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）
  实验二百一十七：EPD Eink 电子墨水显示器 SUNY 2.9 英寸 EPD 屏幕无  线数字  电子纸显示器模块  DEPG0290RWS800F6黑红三色墨水屏
  实验说明：使用傲雪驱动库e-Paper(扩展板直接插入uno)

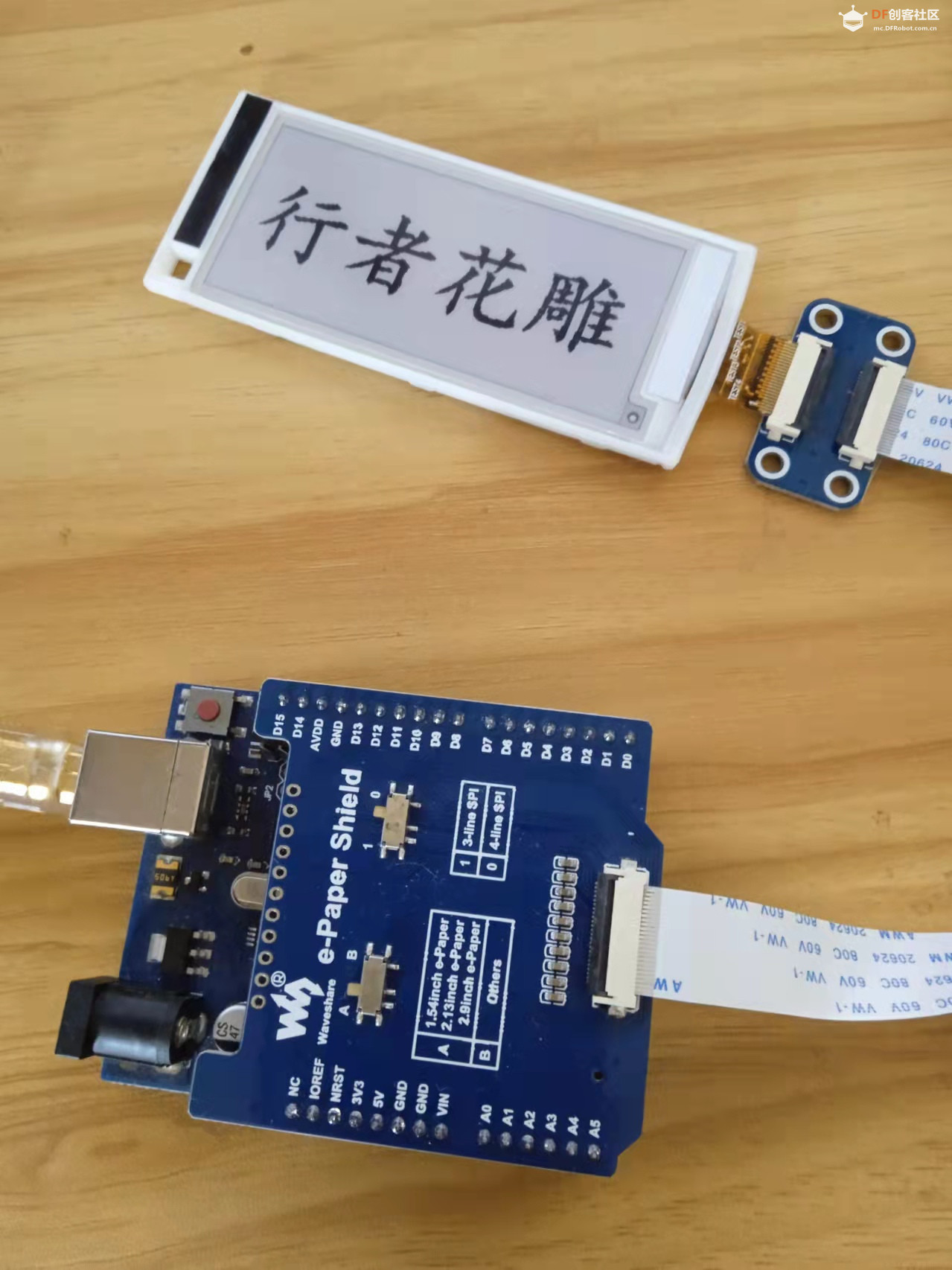

  项目十六：测试 e-Paper Shield 扩展板

   实验开源代码

/*【Arduino】168种传感器模块系列实验（资料代码+仿真编程+图形编程）
  实验二百一十七：EPD Eink 电子墨水显示器 SUNY 2.9 英寸 EPD 屏幕无  线数字  电子纸显示器模块  DEPG0290RWS800F6黑红三色墨水屏
  实验说明：使用傲雪驱动库e-Paper(扩展板直接插入uno)
  项目十六：测试 e-Paper Shield 扩展板
*/

#include "EPD.h"
#include "GUI_Paint.h"
#include "ImageData.h"
#include "EPD_SDCard.h"

void setup() {
  DEBUG("2.9inch e-Paper B and C demo\r\n");
  DEV_Module_Init();

  EPD_2IN9BC_Init();
  EPD_2IN9BC_Clear();
  DEV_Delay_ms(500);
#if 0
  /*show sd card pic*/
  //1.Initialize the SD card
  SDCard_Init();

  //2.Create a new image cache named IMAGE_BW and fill it with white
  //Draw black image
  DEBUG("IMAGE_BW\n");
  Paint_NewImage(IMAGE_BW, EPD_2IN9BC_WIDTH, EPD_2IN9BC_HEIGHT, IMAGE_ROTATE_0, IMAGE_COLOR_POSITIVE);
  Paint_Clear(WHITE);
  //3.Read BMP images into RAM
  //    SDCard_ReadBMP("2in9b-b.bmp", 0, 0);
  SDCard_ReadBMP("2in9c-b.bmp", 0, 0);

  //Draw red image
  DEBUG("IMAGE_BWR\n");
  Paint_NewImage(IMAGE_BWR, EPD_2IN9BC_WIDTH, EPD_2IN9BC_HEIGHT, IMAGE_ROTATE_0, IMAGE_COLOR_POSITIVE);
  Paint_Clear(WHITE);
  //    SDCard_ReadBMP("2in9b-r.bmp", 0, 0);
  SDCard_ReadBMP("2in9c-y.bmp", 0, 0);

  //4.Refresh the picture in RAM to e-Paper
  EPD_2IN9BC_Display();
  DEV_Delay_ms(2000);
#elif 1
  /*show image for array*/
  //1.Draw black image
  Paint_NewImage(IMAGE_BW, EPD_2IN9BC_WIDTH, EPD_2IN9BC_HEIGHT, IMAGE_ROTATE_0, IMAGE_COLOR_POSITIVE);
  Paint_DrawBitMap(IMAGE_BLACK);

  //2.Draw red image
  Paint_NewImage(IMAGE_BWR, EPD_2IN9BC_WIDTH, EPD_2IN9BC_HEIGHT, IMAGE_ROTATE_0, IMAGE_COLOR_POSITIVE);
  Paint_DrawBitMap(IMAGE_RED);

  //3.Refresh the picture in RAM to e-Paper
  DEBUG("EPD_2IN9BC_Display\r\n");
  EPD_2IN9BC_Display();
  DEV_Delay_ms(8000);
#endif

#if 0
  /*Horizontal screen*/
  //1.Draw black image
  Paint_NewImage(IMAGE_BW, EPD_2IN9BC_WIDTH, EPD_2IN9BC_HEIGHT, IMAGE_ROTATE_90, IMAGE_COLOR_POSITIVE);
  Paint_Clear(WHITE);
  Paint_DrawPoint(5, 70, BLACK, DOT_PIXEL_1X1, DOT_STYLE_DFT);
  Paint_DrawPoint(5, 80, BLACK, DOT_PIXEL_2X2, DOT_STYLE_DFT);
  Paint_DrawLine(20, 70, 50, 100, BLACK, LINE_STYLE_SOLID, DOT_PIXEL_1X1);
  Paint_DrawLine(50, 70, 20, 100, BLACK, LINE_STYLE_SOLID, DOT_PIXEL_1X1);
  Paint_DrawRectangle(60, 70, 90, 100, BLACK, DRAW_FILL_FULL, DOT_PIXEL_1X1);
  Paint_DrawCircle(125, 85, 15, BLACK, DRAW_FILL_EMPTY, DOT_PIXEL_1X1);
  Paint_DrawString_EN(5, 15, "hello world", &Font12, WHITE, BLACK);
  Paint_DrawNum(5, 30, 123456789, &Font16, BLACK, WHITE);

  //2.Draw red image
  Paint_NewImage(IMAGE_BWR, EPD_2IN9BC_WIDTH, EPD_2IN9BC_HEIGHT, IMAGE_ROTATE_90, IMAGE_COLOR_POSITIVE);
  Paint_Clear(WHITE);
  Paint_DrawPoint(5, 90, RED, DOT_PIXEL_3X3, DOT_STYLE_DFT);
  Paint_DrawPoint(5, 100, RED, DOT_PIXEL_4X4, DOT_STYLE_DFT);
  Paint_DrawLine(125, 70, 125, 100, RED, LINE_STYLE_DOTTED, DOT_PIXEL_1X1);
  Paint_DrawLine(110, 85, 140, 85, RED, LINE_STYLE_DOTTED, DOT_PIXEL_1X1);
  Paint_DrawRectangle(20, 70, 50, 100, RED, DRAW_FILL_EMPTY, DOT_PIXEL_1X1);
  Paint_DrawCircle(165, 85, 15, RED, DRAW_FILL_FULL, DOT_PIXEL_1X1);
  Paint_DrawString_EN(5, 0, "waveshare Electronics", &Font12, BLACK, WHITE);
  Paint_DrawNum(5, 50, 987654321, &Font16, WHITE, RED);

  //3.Refresh the image in RAM to e-Paper
  EPD_2IN9BC_Display();
#endif
  DEV_Delay_ms(3000);
  EPD_2IN9BC_Clear();

  EPD_2IN9BC_Sleep();
  DEV_Module_Exit();
}

void loop() {
}
复制代码

上述程序可以通过编译，上传时间有点长，出错信息如下：


C:\Program Files (x86)\Arduino\libraries\EPD\src/EPD.h:1:18: warning: extra tokens at end of #ifndef directive

#ifndef __utility/EPD_H_

                  ^

C:\Program Files (x86)\Arduino\libraries\EPD\src/EPD.h:2:18: warning: ISO C++11 requires whitespace after the macro name

#define __utility/EPD_H_

                  ^

使用记事本打开EPD.h库，好像出错的就是第一和第二行
